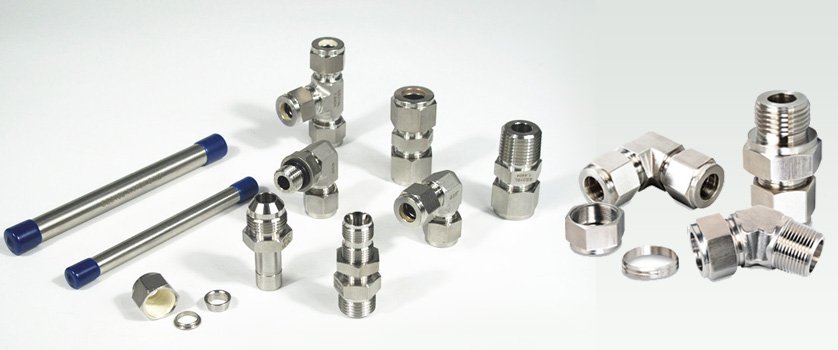

We offer a range of high quality, high performance instrument fittings for a variety of applications. Our range includes double ferrule fittings for oil and gas, process and nuclear applications, to DIN single ferrule fittings for hydraulics and railways, threaded adaptors, quick release connectors and FlexiGrip fittings.
We provide these fittings in different types like Reducing Tee, Bulk Head Union Elbow, Couplings, Plug & Union, Cap, Straight union, Union Elbow, Connector, Female Run Tee, Male Branch Tee, Swivel Pipe Adapter, Swivel Adjustable Run Tee, Collar and more. All these types are also available in various materials such as Stainless Steel Fittings, Duplex & Super Duplex Steel Fittings, Monel Fittings, Inconel Fittings, Titanium Fittings, Hastelloy Fittings, and Copper Fittings.
Our Double Ferrule Compression Tube Fittings provide leak proof torque free seals at all tubing connections. They eliminate hazardous leaks in instrumentation, process, pneumatic, hydraulic, gas and other applicable tubing systems which could otherwise turn out to be costly to the installation.
Size : 1/16"OD to 2"OD,OD to 50mm OD
Thread : Thread NPT, BSP, BSPT, UNF, ISO, SAE, etc.
Finish : Mechanical Polish as well as Electropolish finishes.
Connection : Male, Female, Welded
Pressure Rating : 6000PSI for Stainless Steel,300/1000/3000PSI for Brass
Category : Instrumentation Tube Fittings, Compression Tube Fittings, Ferrule Fittings, Tube Fittings
Type : Union Elbow, Reducing 90 Deg. Union Elbow, Pipe Caps, Couplings, Pipe Plug, Hollow Hex Plug, Elbow, Reducing Union, 90 Deg. Nipples, Adaptors, Crosses, Union Ball Joints, Reducing Bushing, Reducers, Extender Leg 90 Deg. Union Elbow, 45 Deg. Union Elbow, Union Tee, Female Connector, Male Connector, Manifold Tee, Locator Union, Extended Run Leg Union Tee, Reducing Tee, Tribow, ATW Weld Ring, Tube Socket weld To Pipe Butt Weld, Tube Butt Weld To Tube Socket Weld, Port Connector Etc. Also as perthe National & International Standard.
ASTM A276 / A479 / A182, A-269, A-268, A-213, A-789, 304, 304L, 310, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 410, 416, 420, 430, 431, 904L
ASTM A276 / A182 / A479 2205 (F51, S31803 / F60, S32205), SMO254 (F44, S32154), 2507 (F53, S32750 / F55, S32760), Ferralium 255 (F61 S32550).
ASTM B160 / A473 200 (N02200), 201 (N02201), Alloy 20 (N08020).
ASTM B164 / B564 400 (N04400), 500 (N05500).
ASTM B166 / B564 / B408 / B425 / B649 600 (N06600), 601 (N06601), 625 (N06625), 718 (N07718), 800 (N08800), 800H (N08810), 800HT (N08811), 825 (N08825), 904L (N08904).
ASTM B574 / B564 / B572 / B335 C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675)
Commercial, ETP, OFE, CuNi 90/10 (C70600), CuNi 70/30 (C71500), Brass, Naval Brass, Aluminium Bronze, Admiralty Brass.
ASTM B348 / B381 Gr2, Gr5 (Ti6AI4V), Gr7
ASTM A182 & ASME SA182 F1, F5, F9, F11, F12, F22, F91
ASTM A105 / A350 Gr. LF2, LF3.
